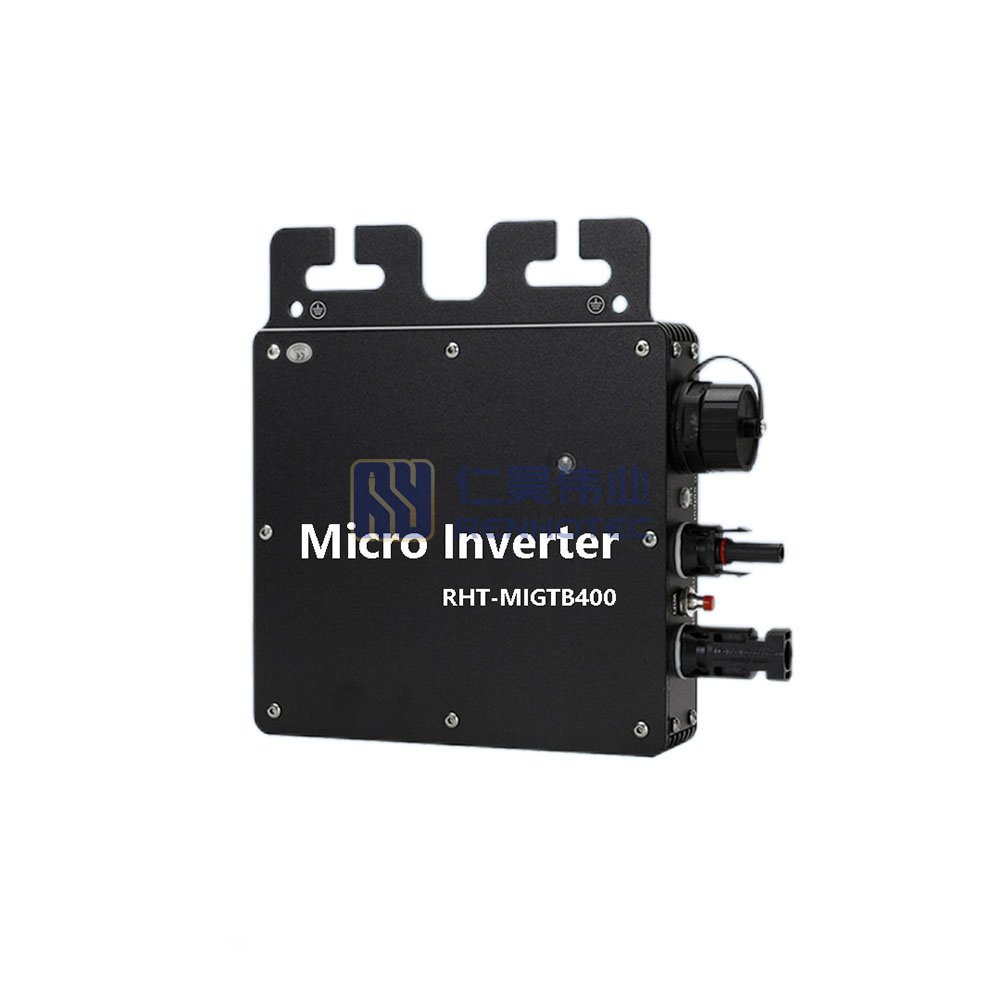

400W Micro Inverter Grid-tied System

SKU: RHT-MIGTB400 Category:

  • Wide compatibility, Support Wifi
  • Built-in solar charge controller
  • Overload and short circuit protection
  • Automatic restart when AC power is restored
  • Utility voltage or generator power compatible
Get A Quotation

The main function of the solar inverter is to reverse the DC power from the battery into AC power. Through a full-bridge circuit, usually using an SPWM processor through modulation, filtering, boosting, etc., sinusoidal AC power matching the frequency and rated voltage of the lighting load is obtained for use by the system end-user. With the inverter, a DC battery can be used to provide AC power to the appliances.

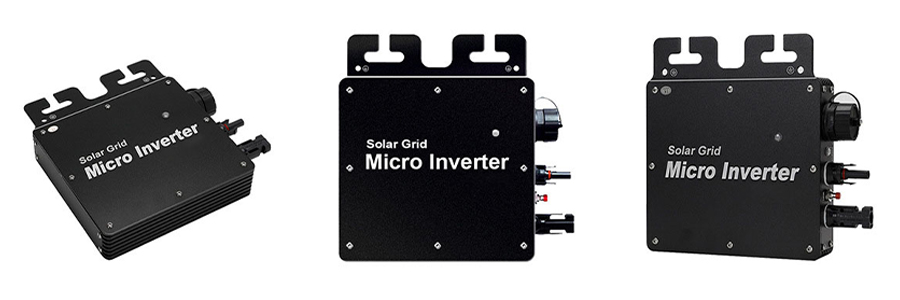

400W Micro Inverter Grid-tied System

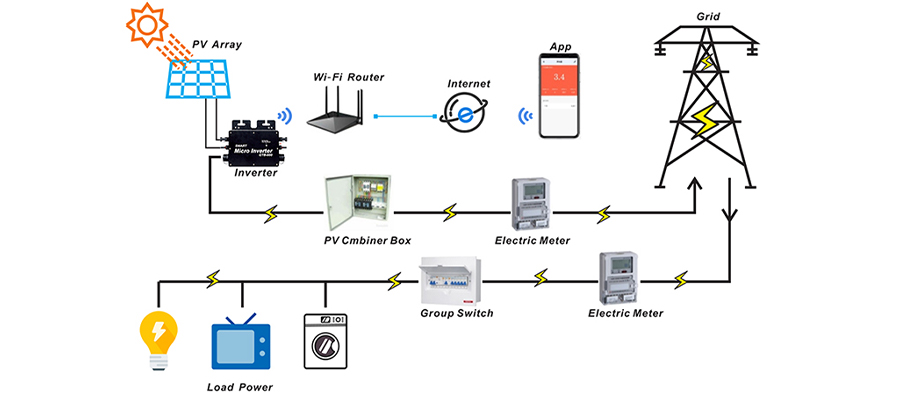

Structure of Solar Power System

Structure of Solar Power System

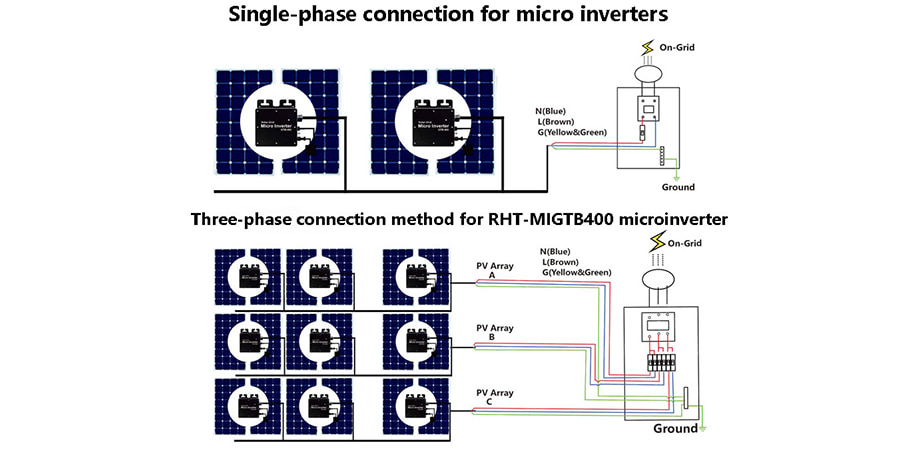

Single phase connection for micro inverters

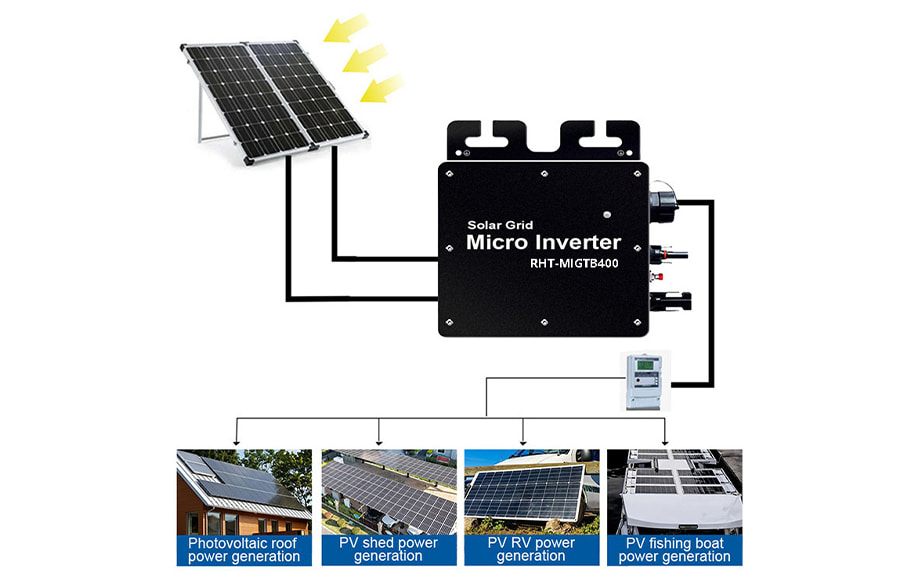

Application

Mainly used for Photovoltaic roof power generation, PV shed power generation, PV RV power generation, PV fishing power generation.

Micro Inverter Application



Input PV Connector Number

1 Set
MPPT Operating Voltage Range

20V-50V
Start-up Voltage

22V
Max Input Voltage

50V
Max Input Power

600W
Max Input Current

20A
Single-phase Grid Type

120V, 230V
Rated Output Power

600W
Max Output Power

600W
Nominated Output Current

@230VAC: 3.0A, @120VAC: 6A
Nominated Output Voltage

120VAC, 230VAC
Nominated Output Frequency

50Hz, 60Hz
Power Factor

＞0.99%
Total Harmonic Distortion

THD <5%
Max Units Per Branch

@120VAC: 5units, @230VAC: 10units
Peak Efficiency

95%
Operating Temperature

-40℃ to +65℃
Storage Temperature

-40℃ to +85℃
Size

200*230*40mm
Ingress Protection

IP66
Cooling Mode

Natural Convection – Fanless
Communication Interface

WIFI
