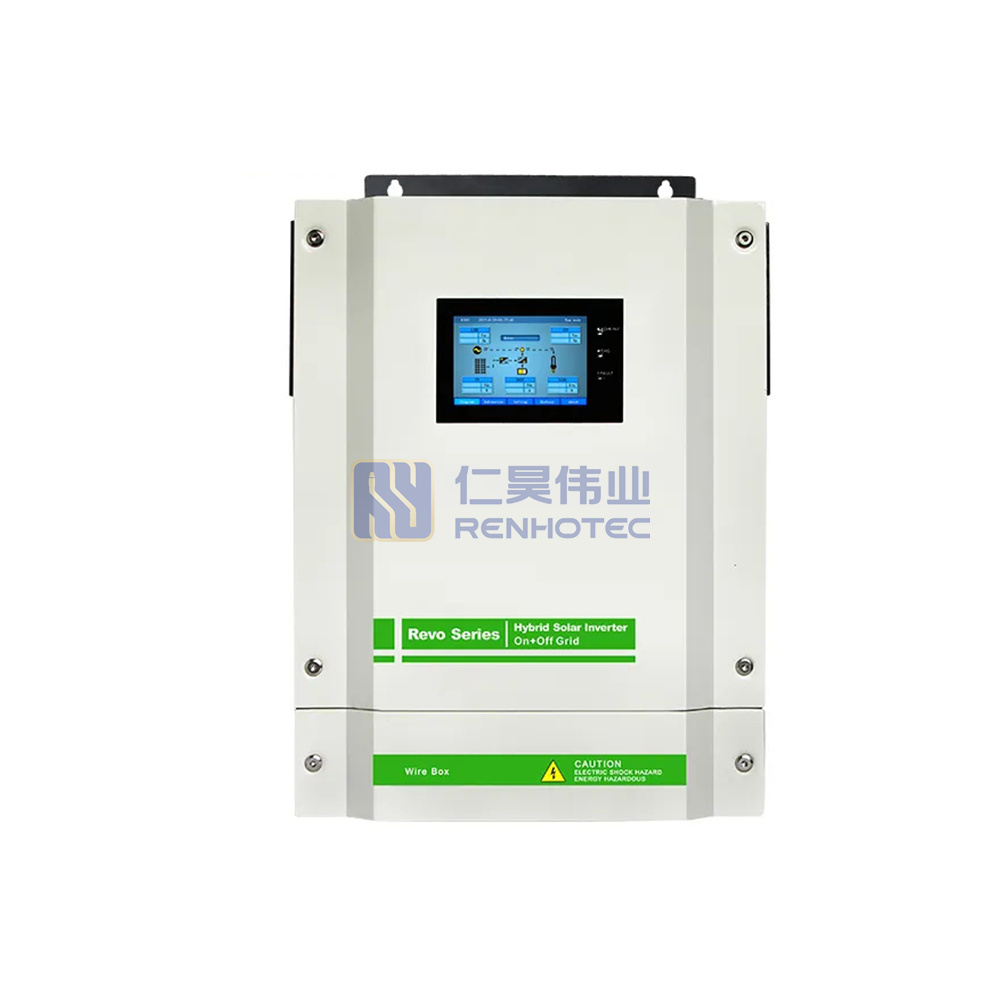

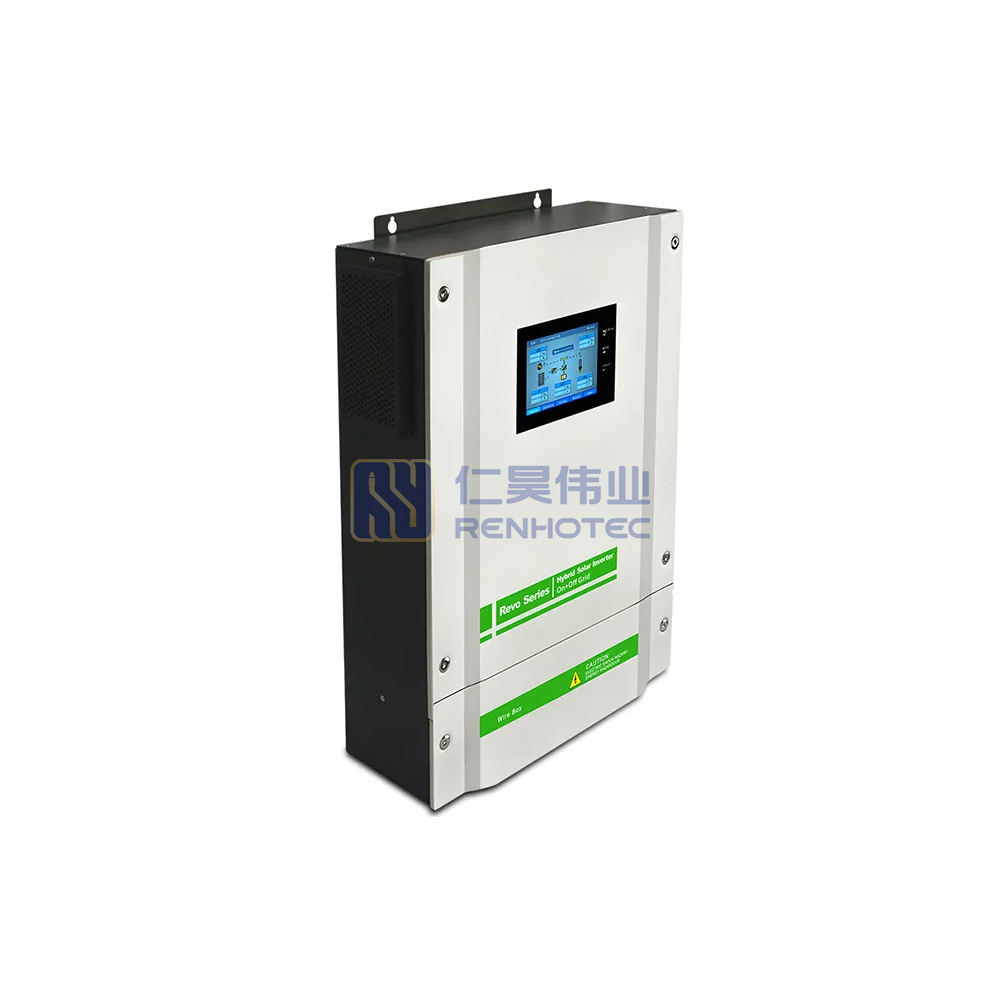

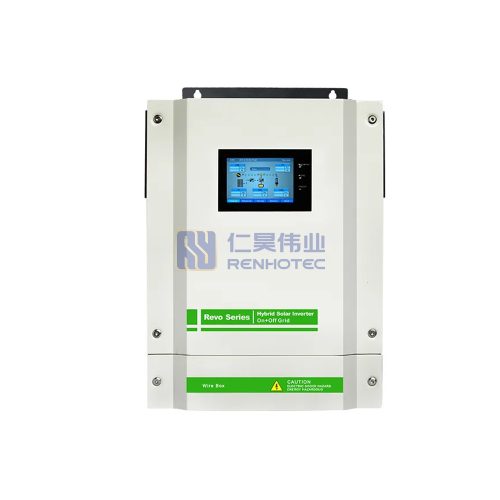

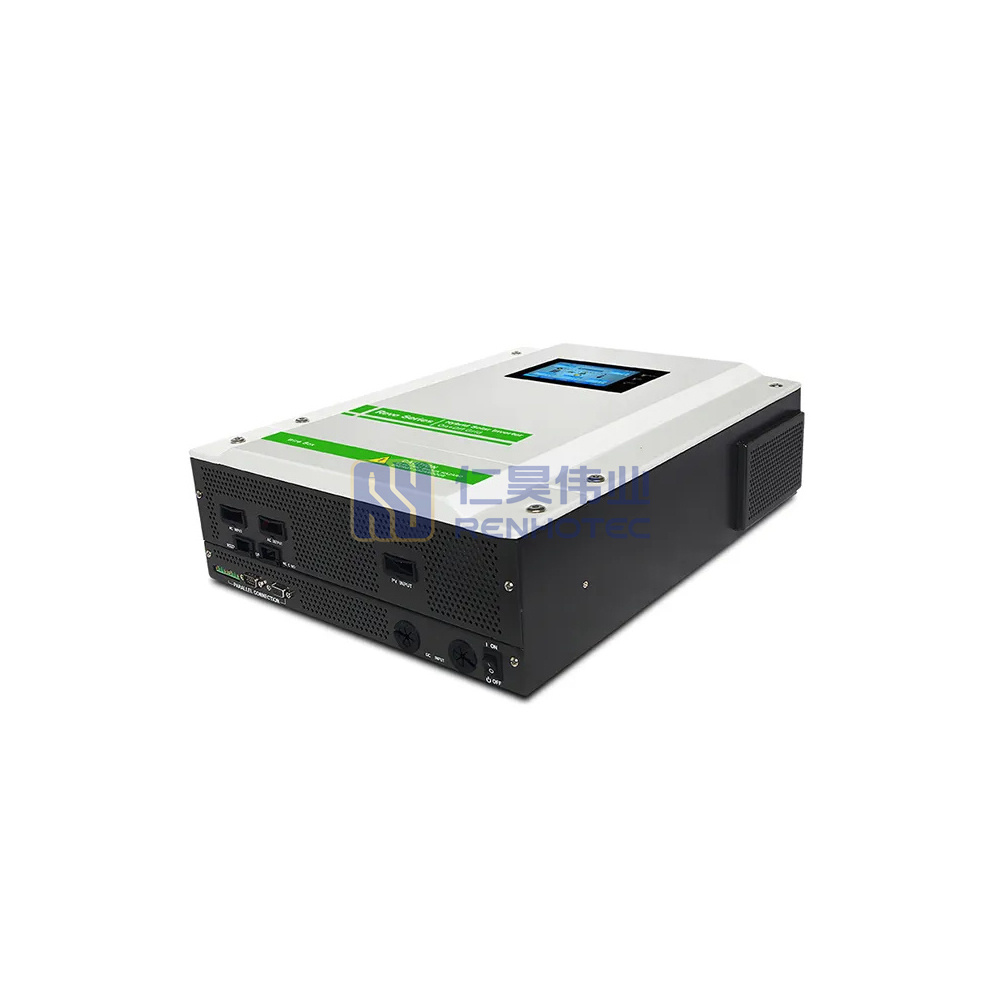

3KW Hybrid Solar Inverter

SKU: RHT-HSI-3000W Category:

  • Wide compatibility, Support Wifi
  • Built-in solar charge controller
  • Overload and short circuit protection
  • Automatic restart when AC power is restored
  • Utility voltage or generator power compatible
  • Selectable charging current according to application
  • Intelligent battery charger designed to optimize battery performance
  • Selectable input voltage range for home appliances and personal computers
Get A Quotation

The main function of the solar inverter is to reverse the DC power from the battery into AC power. Through a full-bridge circuit, usually using an SPWM processor through modulation, filtering, boosting, etc., sinusoidal AC power matching the frequency and rated voltage of the lighting load is obtained for use by the system end-user. With the inverter, a DC battery can be used to provide AC power to the appliances.
Hybrid Solar Inverter

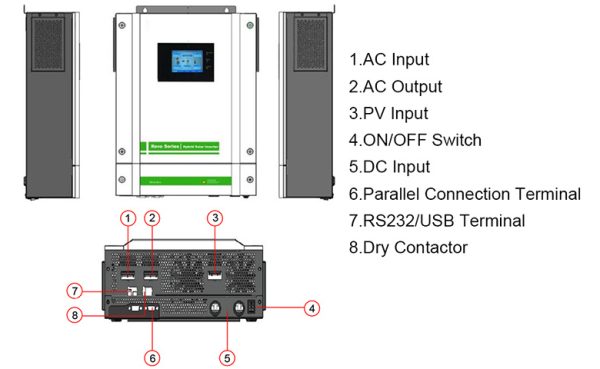

Details of Hybrid Solar Inverter

Hybrid Solar Inverter include: Solar panels, Battery pack, MPPT Solar Charge Controller, Control and sensing circuitry, Transfer Switch.

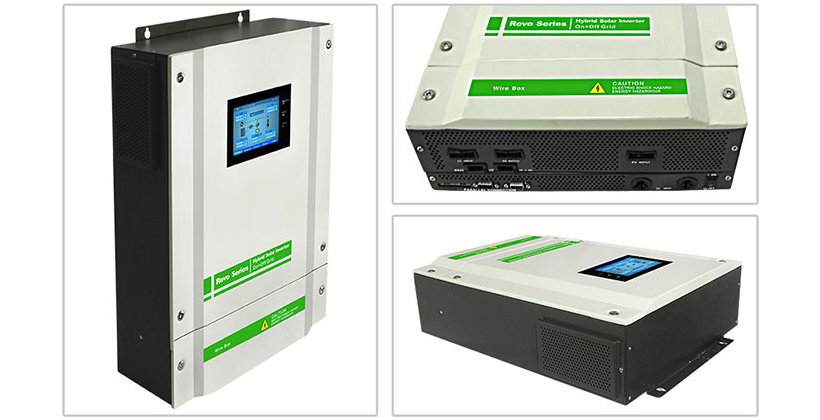

Hybrid Solar InverterHybrid Solar Inverter

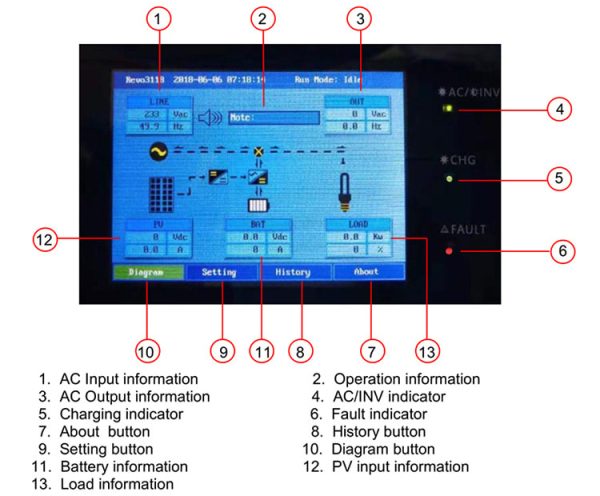

Hybrid Solar Inverter Display

Hybrid Solar Inverter

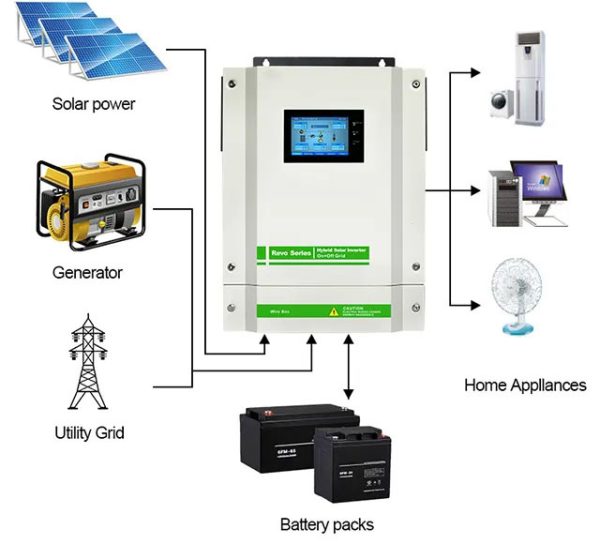

Application

Mainly used for UPS back-up power, Solar/Wind Energy Systems, Planting/breeding base, Daily domestic power supply, Mountain/border/forest area, Outdoor power supply for caravans and so on.

APPLICATION

Inverter Type

Hybrid Solar

Controller Type

MPPT

Rated Power

Rated Voltage

220V AC, 230V AC, 240V AC

Selectable Voltage Range

170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)

Automatic Transfer Time

<10ms

Battery Voltage

24V

Battery Type

Lead-acid battery, Lithium-ion

Max. Efficiency

93.5%

Max. PV Array Power

5000W

MPPT Operating Voltage Range

120-450V DC

Open Circuit Voltage

500V DC

Max. Solar Charging Current

90A

Max. AC Charging Current

60A

Frequency Range

50Hz/60Hz(Auto sensing)

Surge Power

6000W

Communication Interface

Dry-Contact, RS232, USB

Size

345*476*133.2mm

Package Size

540*410*220mm
