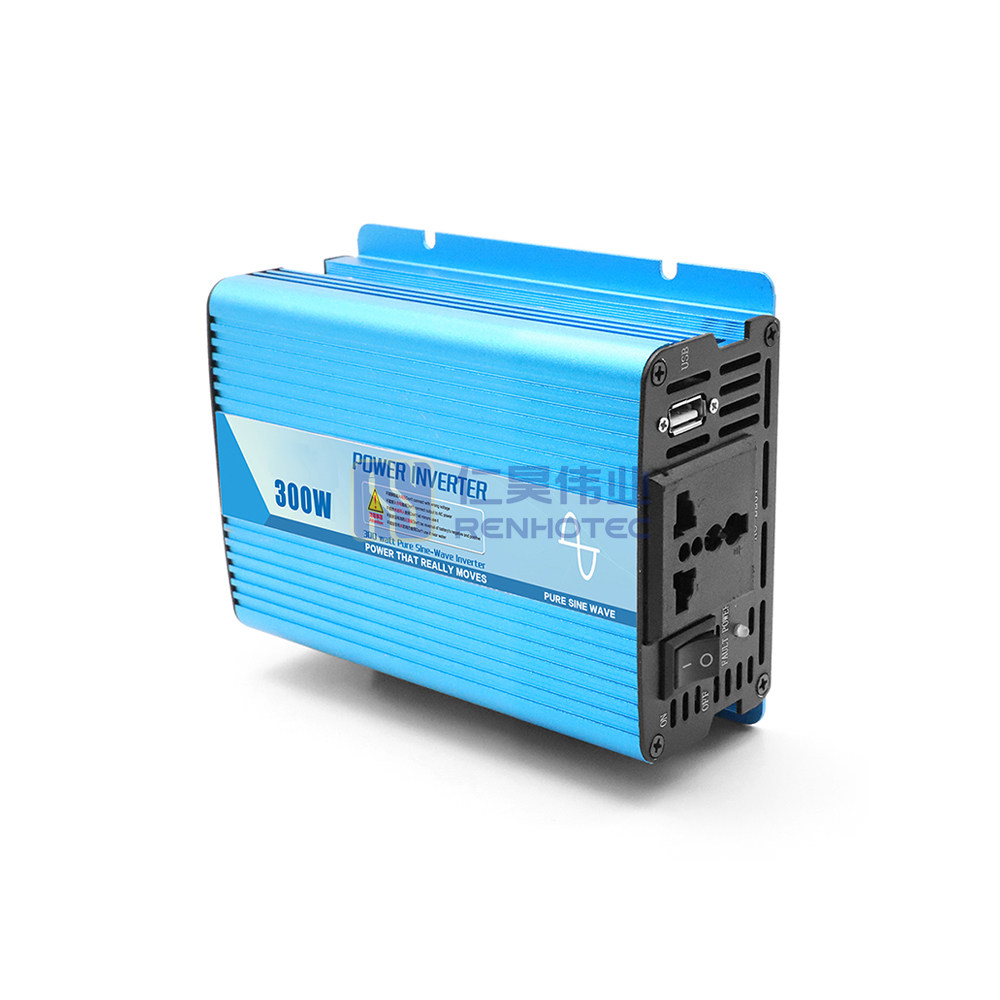

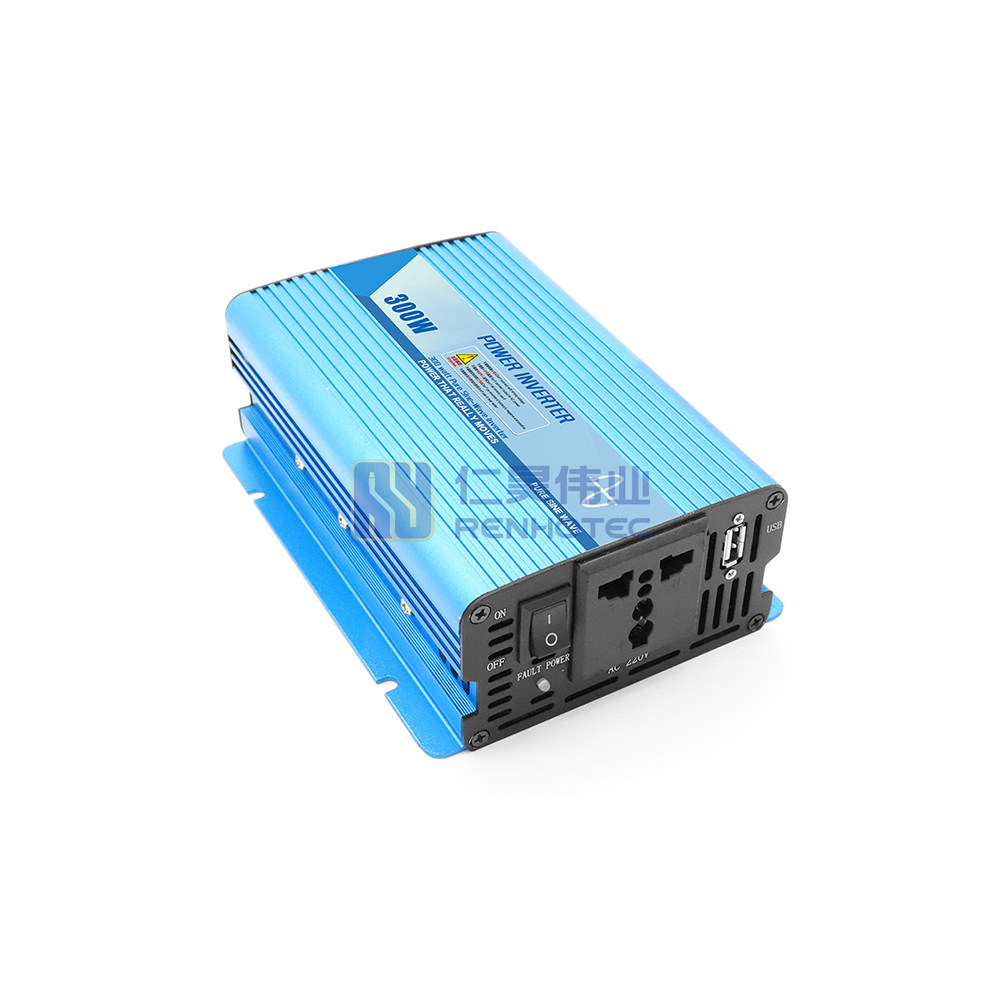

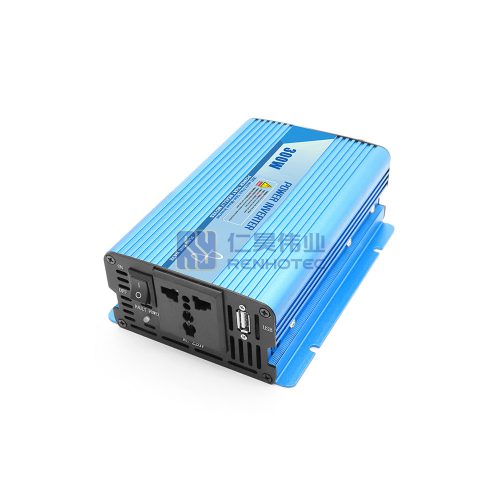

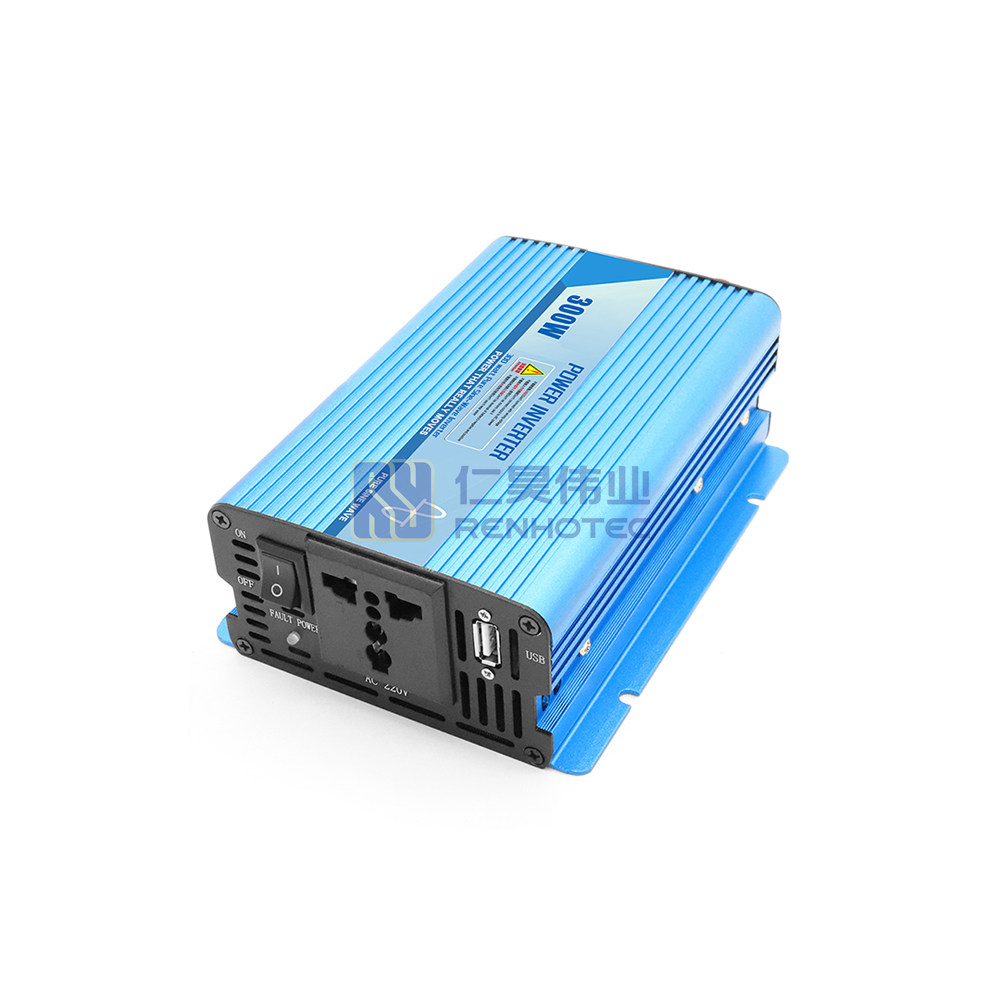

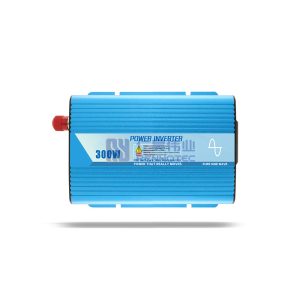

300W Pure Sine Wave Inverter

SKU: RHT-PSI-300W Category:

  • Pure sine wave output
  • 1 year warranty
  • Protection of various types: Battery high and low voltage protection / Output short circuit protection / Overload protection / Over temperature protection / Input reverse connection protection
  • Applications: home appliances, power tools, office and portable equipment, vehicles and yachts, etc.
Get A Quotation

The main function of the solar inverter is to reverse the DC power from the battery into AC power. Through a full-bridge circuit, usually using an SPWM processor through modulation, filtering, boosting, etc., sinusoidal AC power matching the frequency and rated voltage of the lighting load is obtained for use by the system end-user. With the inverter, a DC battery can be used to provide AC power to the appliances.
Pure Sine Wave Inverter

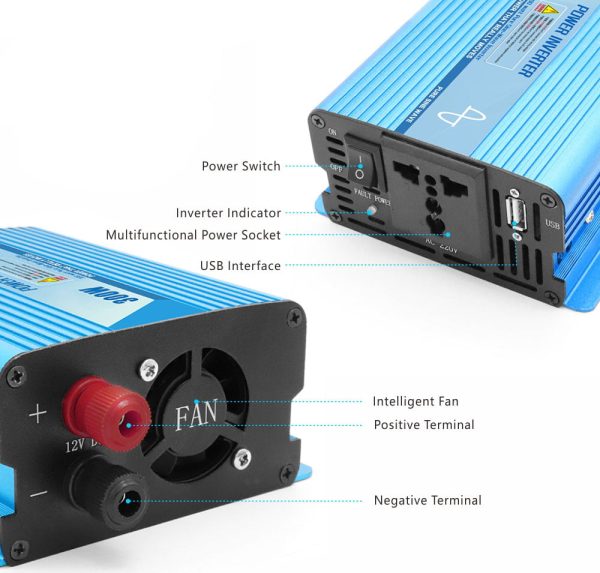

Product Characteristics

Pure Sine Wave Inverter

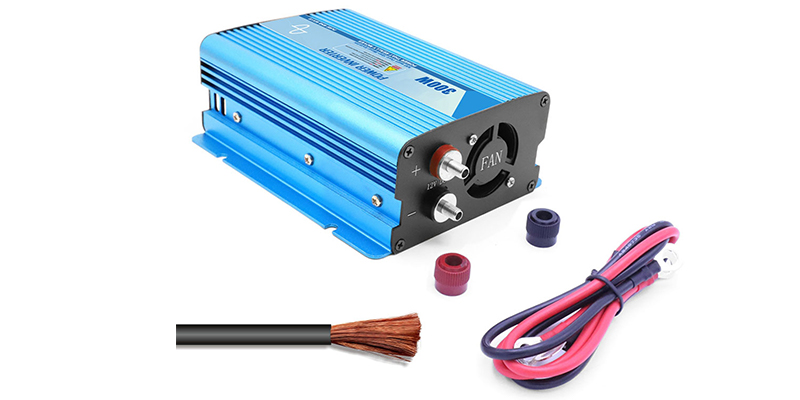

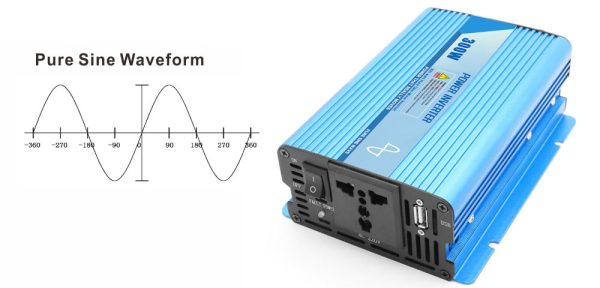

Inverter is a kind of power supply equipment which converts direct current (storage battery, solar cell, wind turbine, etc.) into alternating current. Because of the high frequency power conversion technology, the ferrite transformer is used to replace the old heavy silicon steel transformer. So the inverters are lighter and smaller than other inverters with similar rated power. The output waveform of the inverter is pure sine wave, just like that of the mains. Basically, as long as the load power does not exceed the output power of the inverter, it is possible to drive.

Pure Sine Wave Inverter

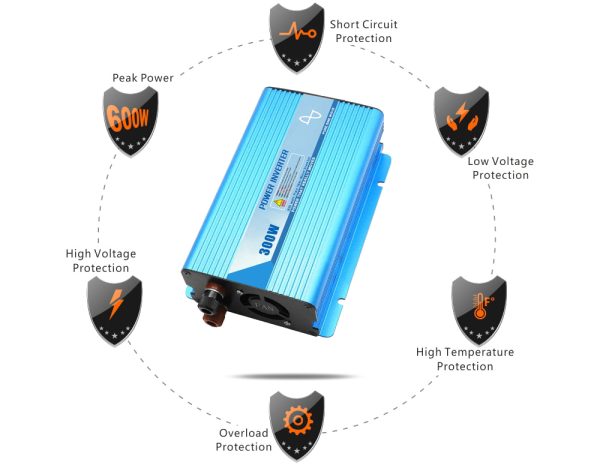

Multiple Intelligent Protections Keep Working Steadily

The product has passed more than 30 tests, such as high and low temperature cycle, alternating humidity and heat, roll-off, interface plug-in durability, fire protection, electromagnetic compatibility, full load test and so on. lt also provides various safety protection functions.

Pure Sine Wave Inverter

Application

Mainly used for UPS back-up power, Solar/Wind Energy Systems, Planting/breeding base, Daily domestic power supply, Mountain/border/forest area, Outdoor power supply for caravans and so on.

APPLICATION

Inverter Type

Pure Sine Wave

Rated Power

Rated Voltage

110V/220V

Input Voltage Range

10-15.5V, 20-31V

Battery Voltage

12V, 24V

Battery Type

Lead-acid battery, Lithium-ion

Max. Efficiency

90%

Max. Solar Charging Current

80A

Max. AC Charging Current

60A

USB Output Current

2A

USB Output Voltage

5V

Frequency Range

50Hz

Surge Power

600W

Size

211.5*118*56mm

Package Size

525*348*332mm

Temperature Protection

Case temperature 65 ℃
