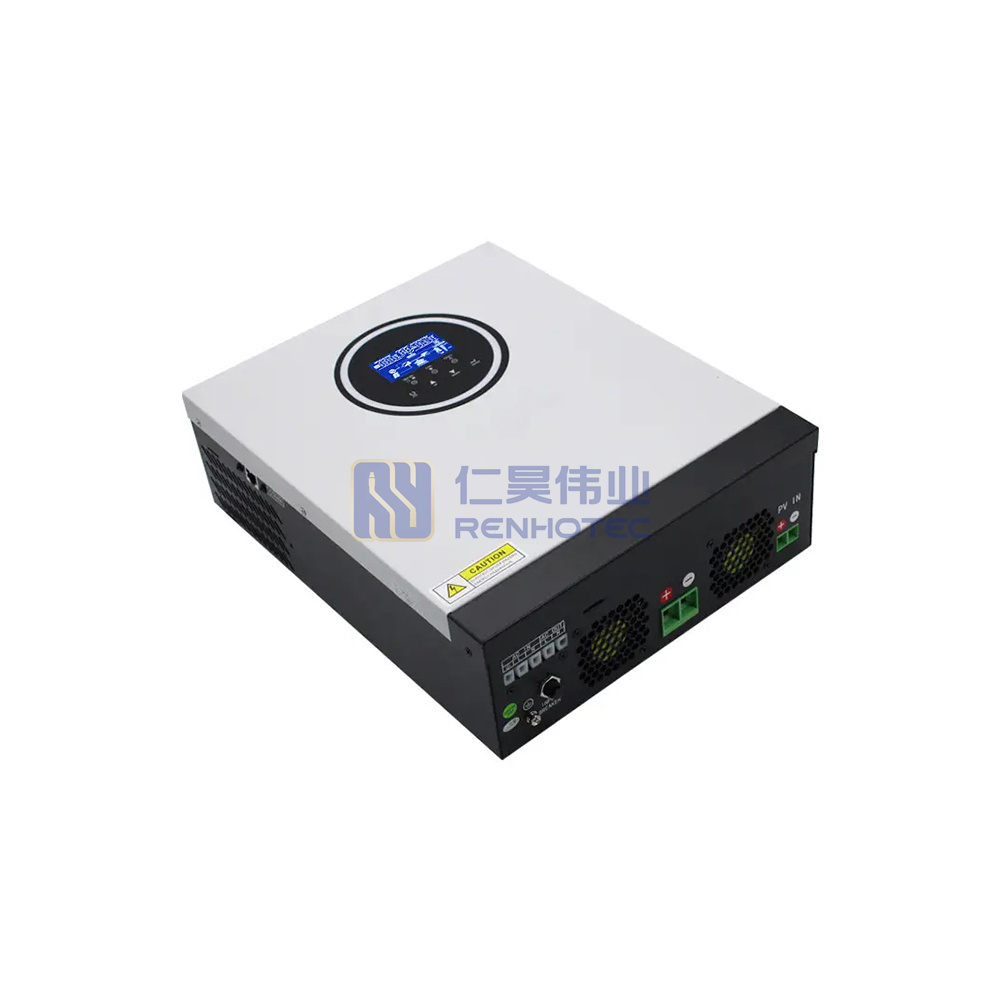

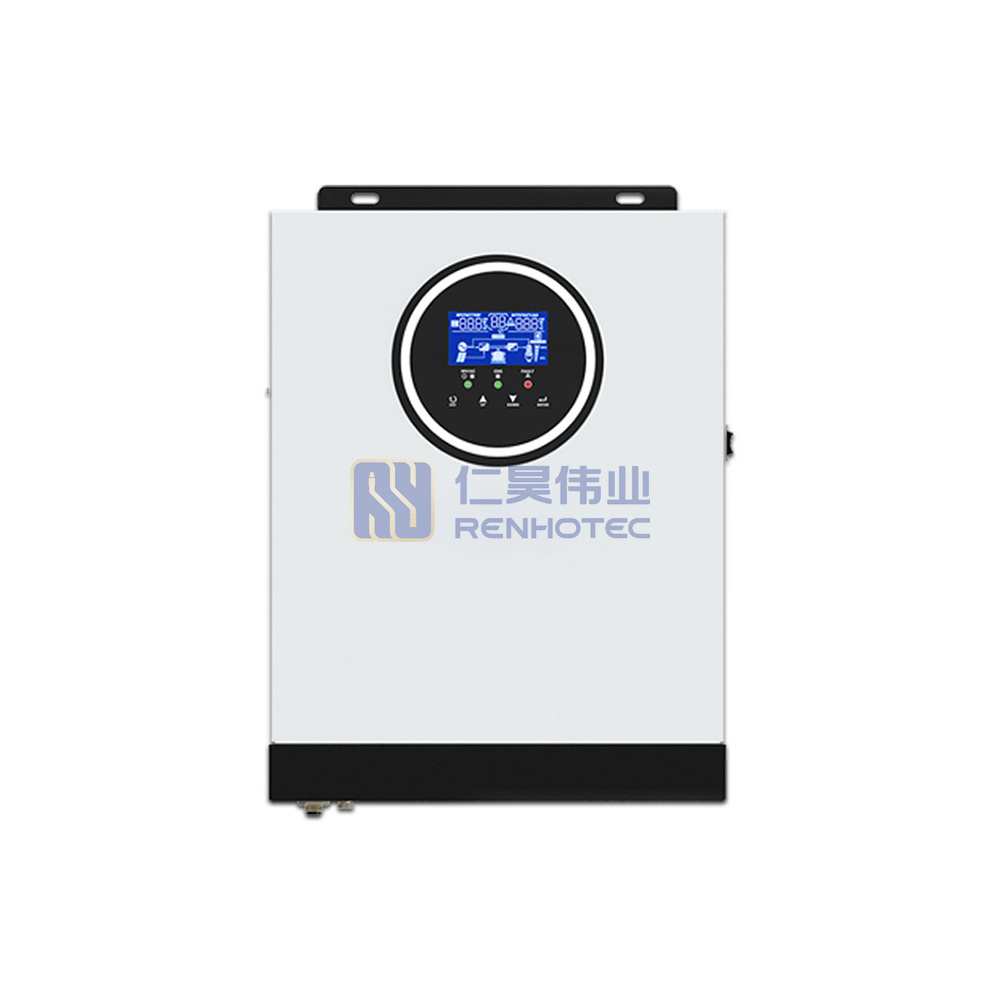

2.2KW Off-grid Inverse Control Solar Inverter

SKU: RHT-ICS-2200W Category:

  • Wide compatibility, Support Wifi
  • Built-in solar charge controller
  • Overload and short circuit protection
  • Automatic restart when AC power is restored
  • Utility voltage or generator power compatible
  • Selectable charging current according to application
  • Intelligent battery charger designed to optimize battery performance
  • Selectable input voltage range for home appliances and personal computers
Get A Quotation

The main function of the solar inverter is to reverse the DC power from the battery into AC power. Through a full-bridge circuit, usually using an SPWM processor through modulation, filtering, boosting, etc., sinusoidal AC power matching the frequency and rated voltage of the lighting load is obtained for use by the system end-user. With the inverter, a DC battery can be used to provide AC power to the appliances.
Off-grid Inverse Control Solar Inverter

Composition of Off-grid Inverse Control Solar Inverter

Off-grid Inverse Control Solar Inverter include: Solar panels, Battery pack, MPPT Solar Charge Controller, Inverter, Fuses and disconnects.

Off-grid Inverse Control Solar Inverter (2)

Off-grid Inverse Control Solar Inverter

Application

Mainly used for UPS back-up power, Solar/Wind Energy Systems, Planting/breeding base, Daily domestic power supply, Mountain/border/forest area, Outdoor power supply for caravans and so on.

APPLICATION

Inverter Type

Off-grid Inverse Control Solar

Controller Type

MPPT

Rated Power

Rated Voltage

230V AC

Selectable Voltage Range

170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)

Switch Time

10ms (For personal computers) 20ms (For home appliances)

Battery Voltage

12V, 24V

Battery Type

Lead-acid battery, Lithium-ion

Max. Efficiency

93%

Max. PV Array Power

2000W

MPPT Operating Voltage Range

90-450V DC

Open Circuit Voltage

450V DC

Max. Solar Charging Current

80A

Max. AC Charging Current

60A

Frequency Range

50Hz/60Hz(Auto sensing)

Surge Power

4400VA

Communication Interface

GPRS, RS232, WIFI

Size

348*282*105mm

Package Size

380*310*150mm
